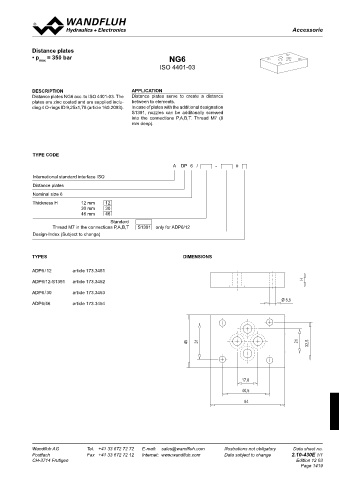

Page 1419 - Softbound_Edition_19_en
P. 1419
Accessorie
Accessories
Distance plates
• p = 350 bar NG6
max
ISO 4401-03
DESCRIPTION APPLICATION
Distance plates NG6 acc. to ISO 4401-03. The Distance plates serve to create a distance
plates are zinc coated and are supplied inclu- between to elements.
ding 4 O-rings ID 9,25x1,78 (article 160.2093). In case of plates with the additional designation
S1391, nozzles can be additonally screwed
into the connections P,A,B,T. Thread M7 (8
mm deep).
TYPE CODE
A DP 6 / - #
International standard interface ISO
Distance plates
Nominal size 6
Thickness H 12 mm 12
30 mm 30
46 mm 46
Standard
Thread M7 in the connections P,A,B,T S1391 only for ADP6/12
Design-Index (Subject to change)
TYPES DIMENSIONS
ADP6 / 12 article 173.3451
ADP6/12-S1391 article 173.3452 H
ADP6 / 30 article 173.3453
Ø 5,5
ADP6/46 article 173.3454
45 31 21 32,5
17,8
40,5
64
Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-430E 1/1
CH-3714 Frutigen Edition 12 03
