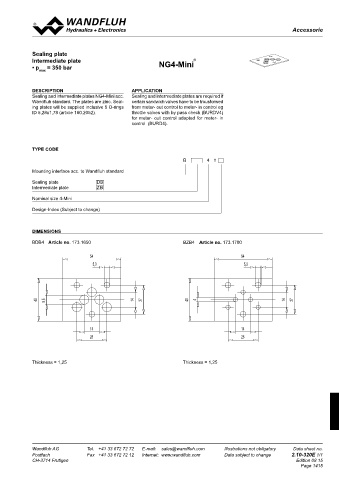

Page 1415 - Softbound_Edition_19_en

Accessorie
Accessories

Sealing plate
Intermediate plate NG4-Mini ®
• p max = 350 bar

DESCRIPTION APPLICATION
Sealing and intermediate plates NG4-Mini acc. Sealing and intermediate plates are required if
Wandfluh standard. The plates are zinc. Seal- certain sandwich valves have to be trousforwed
ing plates will be supplied inclusive 5 O-rings from meter- out control to meter- in control eg
ID 5,28x1,78 (article 160.2052). throttle valves with by pass check (BURDV4)
for meter- out control adapted for meter- in
control (BURD4).

TYPE CODE
B 4 #

Mounting interface acc. to Wandfluh standard
Sealing plate DB
Intermediate plate ZB

Nominal size 4-Mini
Design-Index (Subject to change)

DIMENSIONS
BDB4 Article no. 173.1650 BZB4 Article no. 173.1700

54 54
5,3 5,3

40 8,5 14 27 40 4 14 27

14 14
28 28

Thickness = 1,25 Thickness = 1,25

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-320E 1/1
CH-3714 Frutigen Edition 08 15
