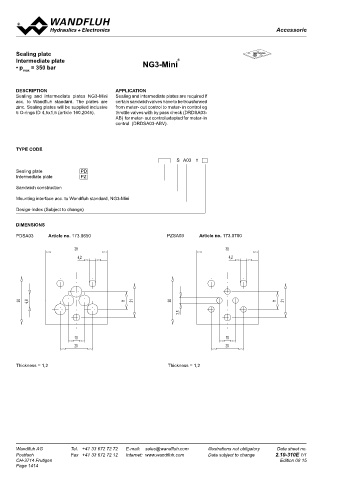

Page 1414 - Softbound_Edition_19_en

Accessorie
Accessories Accessories

Sealing plate Sealing plate
Intermediate plate NG3-Mini ® Intermediate plate NG4-Mini ®
• p max = 350 bar • p max = 350 bar

DESCRIPTION APPLICATION DESCRIPTION APPLICATION
Sealing and intermediate plates NG3-Mini Sealing and intermediate plates are required if Sealing and intermediate plates NG4-Mini acc. Sealing and intermediate plates are required if
acc. to Wandfluh standard. The plates are certain sandwich valves have to be trousforwed Wandfluh standard. The plates are zinc. Seal- certain sandwich valves have to be trousforwed
zinc. Sealing plates will be supplied inclusive from meter- out control to meter- in control eg ing plates will be supplied inclusive 5 O-rings from meter- out control to meter- in control eg
5 O-rings ID 4,5x1,5 (article 160.2045). throttle valves with by pass check (DRDSA03- ID 5,28x1,78 (article 160.2052). throttle valves with by pass check (BURDV4)
AB) for meter- out control adapted for meter- in for meter- out control adapted for meter- in
control (DRDSA03-ABV). control (BURD4).

TYPE CODE TYPE CODE
S A03 # B 4 #

Sealing plate PD Mounting interface acc. to Wandfluh standard
Intermediate plate PZ
Sealing plate DB
Sandwich construction Intermediate plate ZB

Mounting interface acc. to Wandfluh standard, NG3-Mini Nominal size 4-Mini
Design-Index (Subject to change) Design-Index (Subject to change)

DIMENSIONS
DIMENSIONS
PDSA03 Article no. 173.0650 PZSA03 Article no. 173.0700
BDB4 Article no. 173.1650 BZB4 Article no. 173.1700
38 38
4,2 4,2 54 54
5,3 5,3

30 6,8 11 21 30 11 21 40 8,5 14 27 40 4 14 27
3,5

14 14
10 10 28 28
20 20

Thickness = 1,25 Thickness = 1,25
Thickness = 1,2 Thickness = 1,2

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no. Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-310E 1/1 Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-320E 1/1
CH-3714 Frutigen Edition 08 15 CH-3714 Frutigen Edition 08 15
