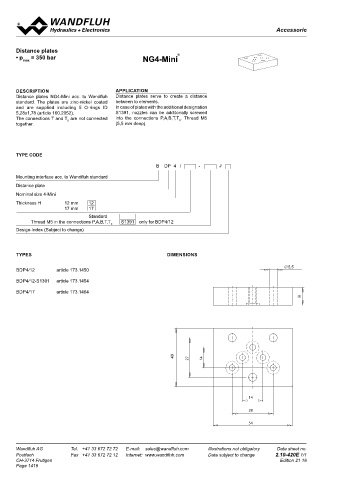

Page 1418 - Softbound_Edition_19_en

Accessorie
Accessories Accessories

Distance plates Distance plates
• p = 350 bar NG4-Mini ® • p = 350 bar NG6
max max
ISO 4401-03

DESCRIPTION APPLICATION DESCRIPTION APPLICATION
Distance plates NG4-Mini acc. to Wandfluh Distance plates serve to create a distance Distance plates NG6 acc. to ISO 4401-03. The Distance plates serve to create a distance
standard. The plates are zinc-nickel coated between to elements. plates are zinc coated and are supplied inclu- between to elements.
and are supplied including 5 O-rings ID In case of plates with the additional designation ding 4 O-rings ID 9,25x1,78 (article 160.2093). In case of plates with the additional designation
5,28x1,78 (article 160.2052). S1391, nozzles can be additonally screwed S1391, nozzles can be additonally screwed
The connections T and T are not connected into the connections P,A,B,T,T . Thread M5 into the connections P,A,B,T. Thread M7 (8
0
0
together. (5,5 mm deep). mm deep).

TYPE CODE TYPE CODE

B DP 4 / - # A DP 6 / - #
Mounting interface acc. to Wandfluh standard International standard interface ISO
Distance plate Distance plates
Nominal size 4-Mini Nominal size 6
Thickness H 12 mm 12 Thickness H 12 mm 12
17 mm 17 30 mm 30
Standard 46 mm 46
Thread M5 in the connections P,A,B,T,T S1391 only for BDP4/12 Standard
0
Design-Index (Subject to change) Thread M7 in the connections P,A,B,T S1391 only for ADP6/12
Design-Index (Subject to change)

TYPES DIMENSIONS TYPES DIMENSIONS

∅ 5,5
BDP4/12 article 173.1450 ADP6 / 12 article 173.3451
BDP4/12-S1391 article 173.1454 ADP6/12-S1391 article 173.3452 H
BDP4/17 article 173.1464 ADP6 / 30 article 173.3453
H Ø 5,5
ADP6/46 article 173.3454

45 31 21 32,5

40 27 14

17,8

40,5
14
64
28

54

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no. Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-420E 1/1 Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-430E 1/1
CH-3714 Frutigen Edition 21 18 CH-3714 Frutigen Edition 12 03
