Cavities
Cavities

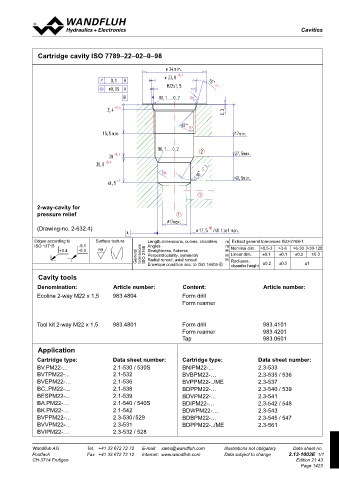

Cartridge cavity ISO 7789–22–02–0–98

2-way-cavity for
pressure relief

(Drawing-no. 2-632.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
Radial runout, axial runout
H
chamfer height
Envelope condition acc. to ISO 14405 E Radiuses, ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 2-way M22 x 1,5 983.4804 Form drill
Form reamer
- PG - Migration - Default - 10.04.11/16:58:23

Tool kit 2-way M22 x 1,5 983.4801 Form drill 983.4101
Form reamer 983.4201
Tap 983.0601

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
BV.PM22-... 2.1-530 / 530S BNIPM22-... 2.3-533
BVTPM22-... 2.1-532 BVBPM22-… 2.3-535 / 536
BVEPM22-… 2.1-536 BVPPM22-../ME 2.3-537
BC..PM22-… 2.1-538 BDPPM22-… 2.3-540 / 539
BESPM22-... 2.1-539 BDVPM22-… 2.3-541
BA.PM22-… 2.1-540 / 540S BDIPM22-… 2.3-542 / 548
BK.PM22-… 2.1-542 BDWPM22-… 2.3-543
BVPPM22-… 2.3-530 / 529 BDBPM22-… 2.3-545 / 547
BVVPM22-… 2.3-531 BDPPM22-../ME 2.3-561
BVIPM22-… 2.3-532 / 528

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1003E 1/1
CH-3714 Frutigen Edition 21 43
