Cavities
Cavities

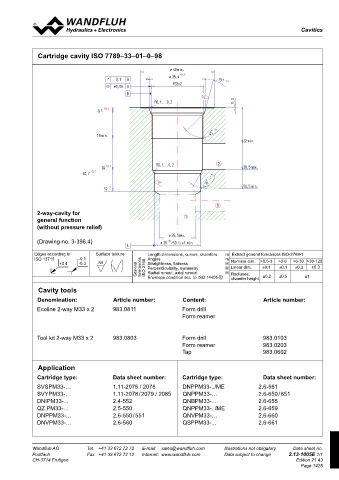

Cartridge cavity ISO 7789–33–01–0–98

2-way-cavity for
general function
(without pressure relief)

(Drawing-no. 3-396.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
H
Radial runout, axial runout
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 2-way M33 x 2 983.0811 Form drill
Form reamer

Tool kit 2-way M33 x 2 983.0803 - PG - Migration - Default - 11.04.11/00:05:07 983.0103
Form drill
Form reamer 983.0203
Tap 983.0602

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
SVSPM33-… 1.11-2075 / 2076 DNPPM33-../ME 2.6-561
SVYPM33-… 1.11-2078 / 2079 / 2085 QNPPM33-… 2.6-650 / 651
DNIPM33-... 2.4-552 QNBPM33-... 2.6-655
QZ.PM33-… 2.5-550 QNPPM33-../ME 2.6-659
DNPPM33-… 2.6-550 / 551 QNVPM33-… 2.6-660
DNVPM33-… 2.6-560 QSPPM33-... 2.6-661

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1005E 1/1
CH-3714 Frutigen Edition 21 43
