Cavities
Cavities

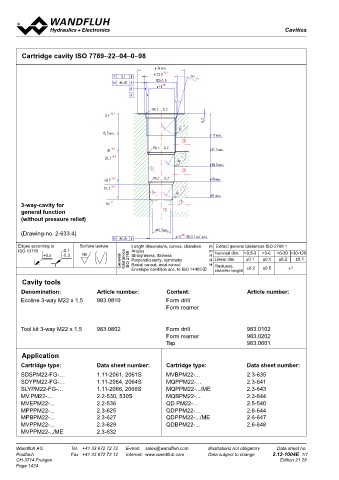

Cartridge cavity ISO 7789–22–04–0–98

3-way-cavity for
general function
(without pressure relief)

(Drawing-no. 2-633.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
Radial runout, axial runout
H
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 3-way M22 x 1,5 983.0810 Form drill
Form reamer

- PG - Migration - Default - 10.04.11/16:58:50
Tool kit 3-way M22 x 1,5 983.0802 Form drill 983.0102
Form reamer 983.0202
Tap 983.0601

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
SDSPM22-FG-… 1.11-2061, 2061S MVBPM22-... 2.3-635
SDYPM22-FG-… 1.11-2064, 2064S MQPPM22-… 2.3-641
SLYPM22-FG-… 1.11-2066, 2066S MQPPM22-.../ME 2.3-643
MV.PM22-… 2.2-530, 530S MQBPM22-... 2.3-644
MVEPM22-... 2.2-536 QD.PM22-... 2.5-540
MPPPM22-... 2.3-625 QDPPM22-… 2.6-644
MPBPM22-... 2.3-627 QDPPM22-.../ME 2.6-647
MVPPM22-… 2.3-629 QDBPM22-... 2.6-648
MVPPM22-../ME 2.3-632

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1004E 1/1
CH-3714 Frutigen Edition 21 28
