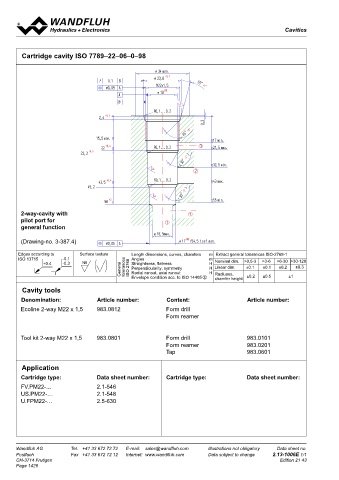

Cartridge cavity ISO 7789–22–06–0–98

2-way-cavity with
pilot port for
general function

(Drawing-no. 3-387.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
Radial runout, axial runout
H
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 2-way M22 x 1,5 983.0812 Form drill
Form reamer

Tool kit 2-way M22 x 1,5 983.0801 Form drill 983.0101
Form reamer
- PG - Migration - Default - 11.04.11/00:03:54 983.0201
Tap 983.0601

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
FV.PM22-… 2.1-546
US.PM22-… 2.1-548
U.FPM22-… 2.5-630

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1006E 1/1
