Cavities
Cavities

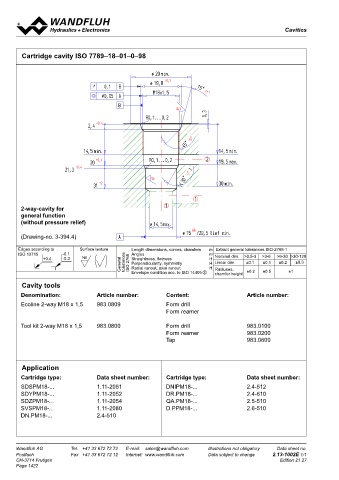

Cartridge cavity ISO 7789–18–01–0–98

2-way-cavity for
general function
(without pressure relief)

(Drawing-no. 3-394.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
H
Radial runout, axial runout
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 2-way M18 x 1,5 983.0809 Form drill
Form reamer

Tool kit 2-way M18 x 1,5 983.0800 Form drill 983.0100
Form reamer 983.0200
- PG - Migration - Default - 11.04.11/00:04:10
Tap 983.0600

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
SDSPM18-... 1.11-2051 DNIPM18-... 2.4-512
SDYPM18-... 1.11-2052 DR.PM18-... 2.4-610
SDZPM18-... 1.11-2054 QA.PM18-... 2.5-510
SVSPM18-... 1.11-2080 D.PPM18-... 2.6-510
DN.PM18-... 2.4-510

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1002E 1/1
CH-3714 Frutigen Edition 21 27
