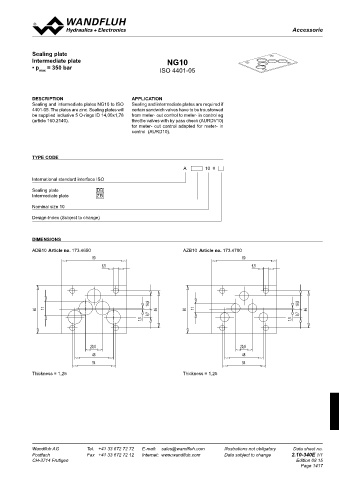

Page 1417 - Softbound_Edition_19_en

Accessories
Accessorie

Sealing plate
Intermediate plate NG10
• p max = 350 bar ISO 4401-05

DESCRIPTION APPLICATION
Sealing and intermediate plates NG10 to ISO Sealing and intermediate plates are required if
4401-05. The plates are zinc. Sealing plates will certain sandwich valves have to be trousforwed
be supplied inclusive 5 O-rings ID 14,00x1,78 from meter- out control to meter- in control eg
(article 160.2140). throttle valves with by pass check (AURDV10)
for meter- out control adapted for meter- in
control (AURD10).

TYPE CODE
A 10 #

International standard interface ISO
Sealing plate DB
Intermediate plate ZB

Nominal size 10
Design-Index (Subject to change)

DIMENSIONS
ADB10 Article no. 173.4650 AZB10 Article no. 173.4700
80 80
6,5 6,5

16,8 16,8
60 17 46 60 11 46
9,7 9,7
1,5 1,5

20,8 20,8
48 48
54 54
Thickness = 1,25 Thickness = 1,25

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-340E 1/1
CH-3714 Frutigen Edition 08 15
