Accessories Accessories
Accessorie

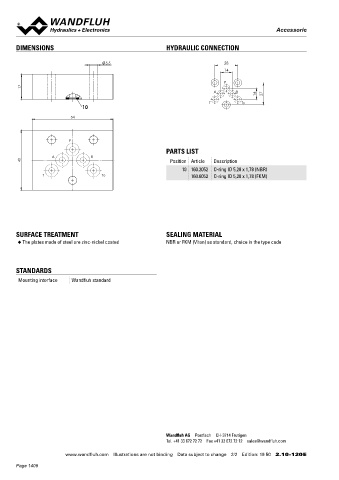

DIMENSIONS HYDRAULIC CONNECTION
Blanking plate
5.5 28 Linking plate NG6
14 • p max = 350 bar ISO 4401-03
P
17
A B DESCRIPTION APPLICATION Ø5,5
14 27 Blanking and linking plates NG6 acc. to ISO Blanking plates are used to seal all ports (P, A,
T T0 4401-03. The plates are zinc coated and will B, T) of a NG6 interface.
10 be supplied inclusive 4 O-rings ID 9,25x1,78 With linking plates selected ports of a NG6
(article 160.2093). interface can be connected. Other ports not in ABP6
54 use are sealed. 12
Ø9,5
P
8
PARTS LIST TYPE CODE 20 (12) AU6/..
A B
40 Position Article Description A BP 6 #
10 160.2052 O-ring ID 5,28 x 1,78 (NBR) A U 6 / # Ø5,5
T To 160.6052 O-ring ID 5,28 x 1,78 (FKM) International standard interface ISO 64
Blanking plate BP
Linking plate U T
Nominal size 6
A B
45 31 21 32,5
Connection of ports see type code list and symbols
Design-Index (Subject to change) P
SURFACE TREATMENT SEALING MATERIAL
◆ The plates made of steel are zinc-nickel coated NBR or FKM (Viton) as standard, choice in the type code
17,8
DIMENSIONS TYPES 40,5
Blanking and linking plate Types Article no. Symbols
STANDARDS Ø5,5 Blanking plate:
Mounting interface Wandfluh standard ABP6 173.3150 A P T B
12 ABP6 Linking plate:
Ø9,5 AU6 / P-B / A-T 173.3250
A P T B
AU6 / P-A / B-T 173.3251
A P T B
8
20 AU6/.. AU6 / P-A 173.3252
(12) A P T B
Ø5,5 AU6 / P-B 173.3253 A P T B
64
AU6 / P-T 173.3254
A P T B
AU6 / A-T 173.3255
T A P T B
A B AU6 / B-T 173.3256
45 31 21 32,5 A P T B
AU6 / A-B-T 173.3257
P A P T B
AU6 / A-B 173.3258
A P T B
17,8 AU6 / P-A-B 173.3259
40,5 A P T B
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
www.wandfluh.com Illustrations are not binding Data subject to change 2/2 Edition: 19 50 2.10-120 E Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.10-130E 1/1
CH-3714 Frutigen A P T B Edition 12 10
