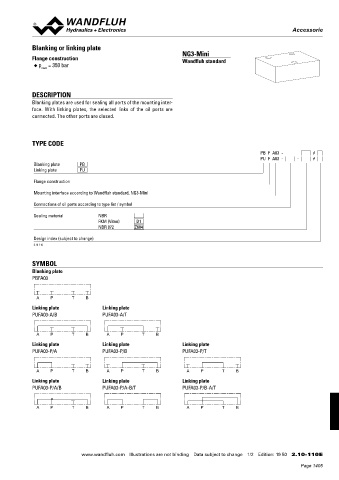

Accessories
Accessorie
Blanking or linking plate
NG3-Mini
Flange construction Wandfluh standard
◆ p = 350 bar
max
DESCRIPTION
Blanking plates are used for sealing all ports of the mounting inter-
face. With linking plates, the selected links of the oil ports are
connected. The other ports are closed.
TYPE CODE
PB F A03 - #
PU F A03 - - #
Blanking plate PB
Linking plate PU
Flange construction
Mounting interface according to Wandfluh standard, NG3-Mini
Connections of oil ports according to type list / symbol
Sealing material NBR
FKM (Viton) D1
NBR 872 Z604
Design index (subject to change)
2.10-110
SYMBOL
Blanking plate
PBFA03
A P T B
Linking plate Linking plate
PUFA03-A/B PUFA03-A/T
A P T B A P T B
Linking plate Linking plate Linking plate
PUFA03-P/A PUFA03-P/B PUFA03-P/T
A P T B A P T B A P T B
Linking plate Linking plate Linking plate
PUFA03-P/A/B PUFA03-P/A-B/T PUFA03-P/B-A/T
A P T B A P T B A P T B
www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 19 50 2.10-110 E
