Accessories Accessories
Accessorie

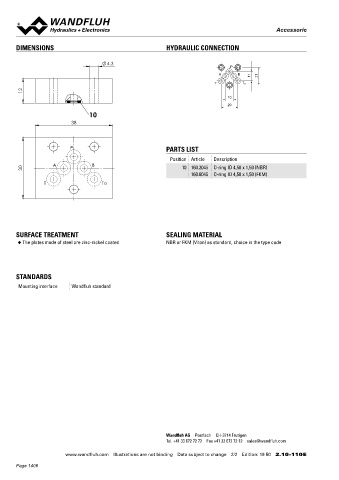

DIMENSIONS HYDRAULIC CONNECTION Blanking or linking plate
Flange construction NG4-Mini
4.3 p = 350 bar Wandfluh standard
P ◆ max
A B
11 21

T T 0
12
10 DESCRIPTION
Blanking plates are used for sealing all ports of the mounting inter-
20
face. With linking plates, the selected links of the oil ports are
10 connected. The other ports are closed.

38
P PARTS LIST TYPE CODE
Position Article Description B BP 4 - #
#
-
B U 4 /
30 A B 10 160.2045 O-ring ID 4,50 x 1,50 (NBR) Mounting interface according to Wandfluh standard
160.6045 O-ring ID 4,50 x 1,50 (FKM)
Blanking plate BP
T To Linking plate U
Nominal size 4-Mini

Connections of oil ports according to type list / symbol

Sealing material NBR
FKM (Viton) D1
SURFACE TREATMENT SEALING MATERIAL NBR 872 Z604

◆ The plates made of steel are zinc-nickel coated NBR or FKM (Viton) as standard, choice in the type code Design index (subject to change)
2.10-120

SYMBOL
STANDARDS
Blanking plate
Mounting interface Wandfluh standard BBP4

A P T B

Linking plate Linking plate
BU4 / A-B BU4 / A-T

A P T B A P T B

Linking plate Linking plate Linking plate
BU4 / P-A BU4 / P-B BU4 / P-T

A P T B A P T B A P T B

Linking plate Linking plate Linking plate
BU4 / P-A-B BU4 / P-A / B-T BU4 / P-B / A-T

A P T B A P T B A P T B

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 2/2 Edition: 19 50 2.10-110 E www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 19 50 2.10-120 E
