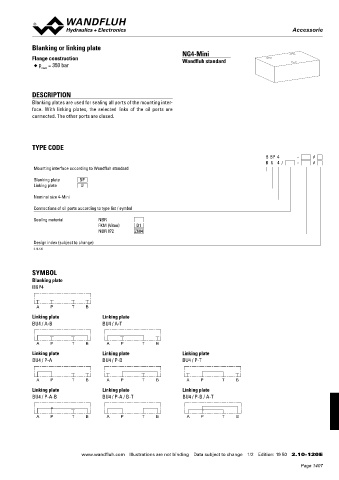

Accessories
Accessorie
Blanking or linking plate
NG4-Mini
Flange construction Wandfluh standard
◆ p = 350 bar
max
DESCRIPTION
Blanking plates are used for sealing all ports of the mounting inter-
face. With linking plates, the selected links of the oil ports are
connected. The other ports are closed.
TYPE CODE
B BP 4 - #
B U 4 / - #
Mounting interface according to Wandfluh standard
Blanking plate BP
Linking plate U
Nominal size 4-Mini
Connections of oil ports according to type list / symbol
Sealing material NBR
FKM (Viton) D1
NBR 872 Z604
Design index (subject to change)
2.10-120
SYMBOL
Blanking plate
BBP4
A P T B
Linking plate Linking plate
BU4 / A-B BU4 / A-T
A P T B A P T B
Linking plate Linking plate Linking plate
BU4 / P-A BU4 / P-B BU4 / P-T
A P T B A P T B A P T B
Linking plate Linking plate Linking plate
BU4 / P-A-B BU4 / P-A / B-T BU4 / P-B / A-T
A P T B A P T B A P T B
www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 19 50 2.10-120 E
