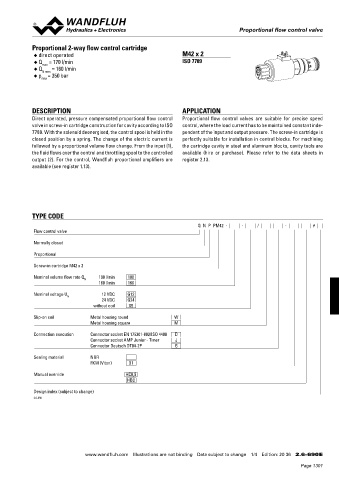

Proportional flow control valve
Proportional flow control valve

Proportional 2-way flow control cartridge
◆ direct operated M42 x 2
◆ Q = 170 l/min ISO 7789
max
◆ Q N max = 160 l/min
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated, pressure compensated proportional flow control Proportional flow control valves are suitable for precise speed
valve in screw-in cartridge construction for cavity according to ISO control, where the load current has to be maintained constant inde -
7789. With the solenoid deenergised, the control spool is held in the pendent of the input and output pressure. The screw-in cartridge is
closed position by a spring. The change of the electric current is perfectly suitable for installation in control blocks. For machining
followed by a proportional volume flow change. From the input (1), the cartridge cavity in steel and aluminum blocks, cavity tools are
the fluid flows over the control and throttling spool to the controlled available (hire or purchase). Please refer to the data sheets in
output (2). For the control, Wandfluh proportional amplifiers are register 2.13.

available (see register 1.13).

TYPE CODE

Q N P PM42 - - / - #
Flow control valve
Normally closed

Proportional

Screw-in cartridge M42 x 2
Nominal volume flow rate Q 100 l/min 100
N
160 l/min 160

Nominal voltage U N 12 VDC G12
24 VDC G24
without coil X5

Slip-on coil Metal housing round W
Metal housing square M

Connection execution Connector socket EN 175301-803/ISO 4400 D
Connector socket AMP Junior - Timer J
Connector Deutsch DT04-2P G

Sealing material NBR
FKM (Viton) D1
Manual override HC8,5
HB0
Design index (subject to change)
2.6-690

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 20 36 2.6-690 E
