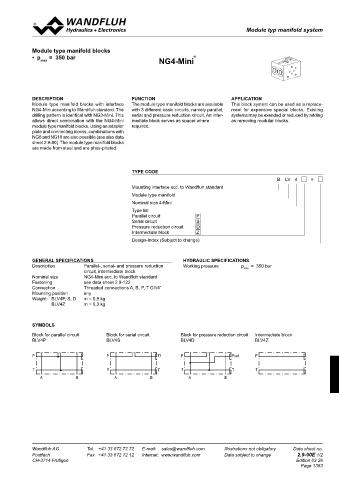

Module type manifold systems
Module typ manifold system
Module type manifold blocks
• p = 350 bar ®
max nG4-Mini
description function application
Module type manifold blocks with interface The module type manifold blocks are available This block system can be used as a replace-
NG4-Mini according to Wandfluh standard. The with 3 different basic circuits, namely parallel, ment for expensive special blocks. Existing
drilling pattern is identical with NG3-Mini. This serial and pressure reduction circuit. An inter- systems may be exended or reduced by adding
allows direct combination with the NG4-Mini mediate block serves as spacer where as removing modular blocks.
module type manifold blocks. Using an adapter required.
plate and connecting blocks, combinations with
NG6 and NG10 are also possible (see also data
sheet 2.9-80). The module type manifold blocks
are made from steel and are phos-phated.
type code
B LV 4 #
Mounting interface acc. to Wandfluh standard
Module type manifold
Nominal size 4-Mini
Type list
Parallel circuit P
Serial circuit S
Pressure reduction circuit D
Intermediate block Z
Design-Index (Subject to change)
General specifications Hydraulic specifications
Description Parallel-, serial- and pressure reduction Working pressure p max = 350 bar
circuit, intermediate block
Nominal size NG4-Mini acc. to Wandfluh standard
Fastening see data sheet 2.9-122
Connection Threaded connections A, B, P, T G1/4”
Mounting position any
Weight: BLV4P, S, D m = 0,9 kg
BLV4Z m = 0,3 kg
syMBols
Block for parallel circuit Block for serial circuit Block for pressure reduction circuit Intermediate block
BLV4P BLV4S BLV4D BLV4Z
P P T1 P Pred P
T T T T T T
A B A B A B
Ø 20.5 G 1/4“ 9.5
31.5 G 1/4“ Ø 8.5
P T 2
10
T A B
B A M5
27
14
