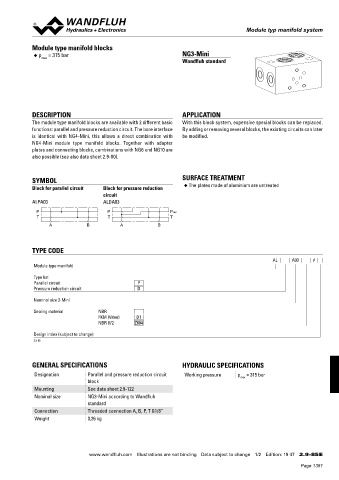

Module type manifold blocks
Module typ manifold system

Module type manifold blocks
◆ p = 315 bar NG3-Mini
max
Wandfluh standard

DESCRIPTION APPLICATION
The module type manifold blocks are available with 2 different basic With this block system, expensive special blocks can be replaced.
functions: parallel and pressure reduction circuit. The bore interface By adding or removing several blocks, the existing circuits can later

is identical with NG4-Mini, this allows a direct combination with be modified.

NG4-Mini module type manifold blocks. Together with adapter
plates and connecting blocks, combinations with NG6 and NG10 are
also possible (see also data sheet 2.9-80).

SYMBOL SURFACE TREATMENT
Block for parallel circuit Block for pressure reduction ◆ The plates made of aluminium are untreated
circuit
ALPA03 ALDA03
P P Pred
T T T
A B A B

TYPE CODE
AL A03 #
Module type manifold
Type list
Parallel circuit P
Pressure reduction circuit D
Nominal size 3-Mini

Sealing material NBR
FKM (Viton) D1
NBR 872 Z604

Design index (subject to change)
2.9-85

GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS
Designation Parallel and pressure reduction circuit Working pressure p = 315 bar
max
block
Mounting See data sheet 2.9-122
Nominal size NG3-Mini according to Wandfluh
standard
Connection Threaded connection A, B, P, T G1/8“
Weight 0,26 kg

www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 19 47 2.9-85 E
