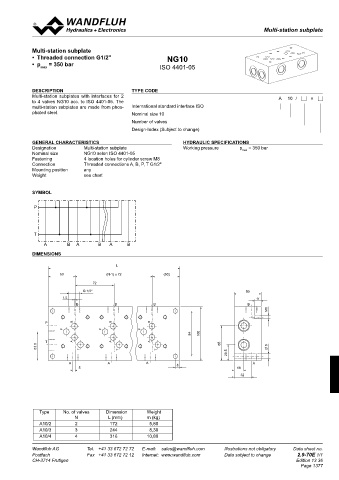

Page 1377 - Softbound_Edition_19_en

Multi-station subplate
Multi-station subplates

Multi-station subplate
• Threaded connection G1/2" nG10
• p = 350 bar
max ISO 4401-05

descripTion Type code
Multi-station subplates with interfaces for 2 A 10 / #
to 4 valves NG10 acc. to ISO 4401-05. The
multi-station subplates are made from phos- International standard interface ISO
phated steel. Nominal size 10
Number of valves
Design-Index (Subject to change)
General characTerisTics hydraulic specificaTions
Designation Multi-station subplate Working pressure p max = 350 bar
Nominal size NG10 selon ISO 4401-05
Fastening 4 location holes for cylinder screw M8
Connection Threaded connections A, B, P, T G1/2"
Mounting position any
Weight see chart

symbol

P

T
A B A B A B
dimensions

L
50 (N-1) x 72 (50)
72
G 1/2“ 50
1.5 11
B B B B
M6

P B B B
P P P
84 100
T A A A
53.5 T 65 Ø 9
T
T
29.5
A A A 8 A
5 18
32

Type No. of valves Dimension Weight
N L (mm) m (kg)
A10/2 2 172 5,80
A10/3 3 244 8,30
A10/4 4 316 10,80

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.9-70E 1/1
CH-3714 Frutigen Edition 13 36
