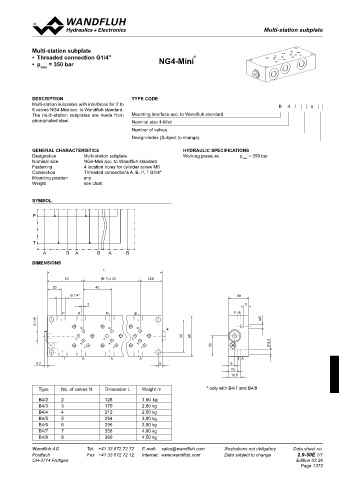

Page 1373 - Softbound_Edition_19_en

Multi-station subplate
Multi-station subplates

Multi-station subplate
• Threaded connection G1/4" nG4-mini ®
• p = 350 bar
max

descripTion Type code
Multi-station subplates with interfaces for 2 to B 4 / #
8 valves NG4-Mini acc. to Wandfluh standard.
The multi-station subplates are made from Mounting interface acc. to Wandfluh standard
phos-phated steel. Nominal size 4-Mini
Number of valves
Design-Index (Subject to change)
General characTerisTics hydraulic specificaTions
Designation Multi-station subplate Working pressure p max = 350 bar
Nominal size NG4-Mini acc. to Wandfluh standard
Fastening 4 location holes for cylinder screw M6
Connection Threaded connections A, B, P, T G1/4"
Mounting position any
Weight see chart

symbol

P

T

A B A B A B
dimensions
L
53 (N-1) x 42 (33)
20 42
G 1/4“ 30
3 9
P B B B P B
G 1/8“ M5

*
B B B
48 60
P P P
A A A 30 Ø 6.5
T T T
T A A A T A
4.2 6 9
13
18.5

Type No. of valves N Dimension L Weight m * only with B4/7 and B4/8
B4/2 2 128 1,50 kg
B4/3 3 170 2,00 kg
B4/4 4 212 2,50 kg
B4/5 5 254 3,00 kg
B4/6 6 296 3,50 kg
B4/7 7 338 4,00 kg
B4/8 8 380 4,50 kg

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.9-50E 1/1
CH-3714 Frutigen Edition 03 26
