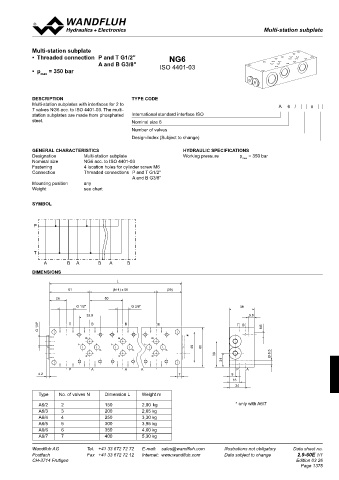

Page 1375 - Softbound_Edition_19_en

Multi-station subplates
Multi-station subplate

Multi-station subplate
• Threaded connection P and T G1/2" nG6
A and B G3/8" ISO 4401-03
• p = 350 bar
max

descriPTion TyPe code
Multi-station subplates with interfaces for 2 to A 6 / #
7 valves NG6 acc. to ISO 4401-03. The multi-
station subplates are made from phosphated International standard interface ISO
steel. Nominal size 6
Number of valves
Design-Index (Subject to change)
GenerAl chArAcTerisTics hydrAulic sPecificATions
Designation Multi-station subplate Working pressure p max = 350 bar
Nominal size NG6 acc. to ISO 4401-03
Fastening 4 location holes for cylinder screw M6
Connection Threaded connections P and T G1/2"
A and B G3/8"
Mounting position any
Weight see chart

symBol

P

T
A B A B A B
dimensions
L
61 (N-1) x 50 (39)
26 50
G 1/2“ G 3/8“ 38
32.5 9.5
G 1/4“ T B B B T B M5
*
B B B
T T T
46 60
P P P
39 Ø 6.5
A A A
21
P A A A P A
4.2 7 9
16
24
Type No. of valves N Dimension L Weight m
A6/2 2 150 2,00 kg * only with A6/7
A6/3 3 200 2,65 kg
A6/4 4 250 3,30 kg
A6/5 5 300 3,95 kg
A6/6 6 350 4,60 kg
A6/7 7 400 5,30 kg

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.9-60E 1/1
CH-3714 Frutigen Edition 03 26
