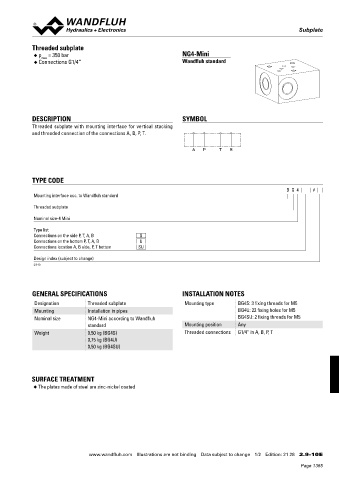

Page 1365 - Softbound_Edition_19_en

Threaded subplate
Subplate

Threaded subplate
◆ p = 350 bar NG4-Mini
max
◆ Connections G1/4“ Wandfluh standard

DESCRIPTION SYMBOL
Threaded subplate with mounting interface for vertical stacking

and threaded connection of the connections A, B, P, T.

A P T B

TYPE CODE
B G 4 #
Mounting interface acc. to Wandfluh standard

Threaded subplate
Nominal size-4 Mini

Type list
Connections on the side P, T, A, B S
Connections on the bottom P, T, A, B U
Connections location A, B side, P, T bottom SU
Design index (subject to change)
2.9-10

GENERAL SPECIFICATIONS INSTALLATION NOTES
Designation Threaded subplate Mounting type BG4S: 3 fixing threads for M5
Mounting Installation in pipes BG4U: 22 fixing holes for M5
Nominal size NG4-Mini according to Wandfluh BG4SU: 2 fixing threads for M5
standard Mounting position Any
Weight 0,50 kg (BG4S) Threaded connections G1/4“ in A, B, P, T
0,75 kg (BG4U)
0,50 kg (BG4SU)

SURFACE TREATMENT
◆ The plates made of steel are zinc-nickel coated
