Threaded subplate Threaded subplate
Subplate

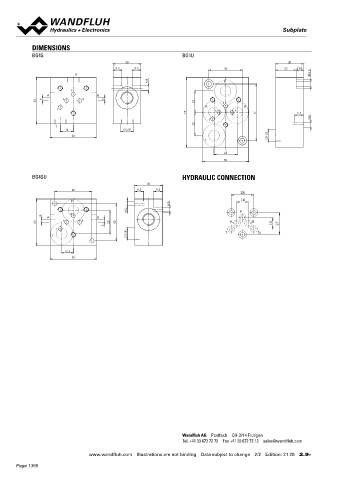

DIMENSIONS Threaded subplate
BG4S BG4U Installation in pipes NG6
30 30 ISO 4401-03
◆ p = 350 bar
9.5 9.5 36 22 8 max
P 5.5 9.5 ◆ Connections G3/8“

M5 P
P
A B
50 3 A B 3 23 P
A B DESCRIPTION SYMBOL
T A B
75 61 9.5 Threaded subplate with mounting interface for vertical stacking and
M5

T threaded connection of the connections A, B, P, T.

25
T
14 G1/4"
50 G1/4" A P T B
T
25
50
TYPE CODE
BG4SU HYDRAULIC CONNECTION A G 6 #
30 International standard interface ISO
40 9.5 9.5
28
Threaded subplate
P 14
M5 Nominal size 6
M5 P
P
3 A B Type list
50 A B 25 40 A B 14 27 Connections A, B, P, T on the side S
3
T Connections A, B, P, T at the bottom U
T G1/4" T T0 Connections A, B, on the side and P, T at the bottom SU

Design index (subject to change)
12.5
2.9-30
50

GENERAL SPECIFICATIONS INSTALLATION NOTES
Designation Threaded subplate Mounting type 4 fixing holes for M5
Mounting Installation in pipes Mounting position Any
Nominal size NG6 according to ISO 4401-03 Threaded connections G3/8“ in A, B, P, T
Weight 1,0 kg (AG6S)
1,0 kg (AG6U)
1,4 kg (AG6SU)

SURFACE TREATMENT
◆ The plates made of steel are zinc-nickel coated
