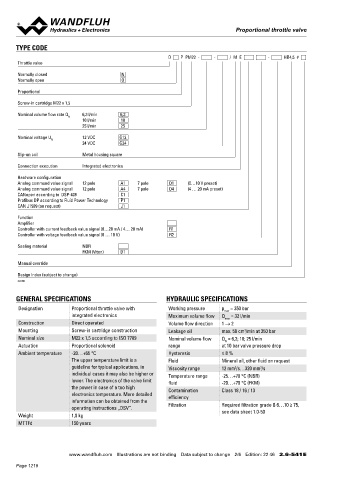

Page 1218 - Softbound_Edition_19_en
P. 1218

Proportional throttle valve                                                                                                  Proportional throttle valve
                                                                                    Proportional throttle valve


       TYPE CODE                                                                                                                   ELECTRICAL CONNECTION
                                                            D     P  PM22  -     -     /  M  E        -     HB4,5  #                X1                 Analog interface (Main)           X1                 Fieldbus interface (Main)
       Throttle valve
                                                                                                                                    Device receptacle  M23, 12 pole male                 Device receptacle  M12, 4 pole male
       Normally closed                      N                                                                                                          1 = Supply voltage +                           2  1  1 = Supply voltage +
       Normally open                        O                                                                                                 8 9  1   2 = Supply voltage 0 VDC                       3 4   2 = Reserved for extentions
                                                                                                                                             7 12 10 2  3 = Stabilised output voltage                       3 = Supply voltage 0 VDC
       Proportional                                                                                                                          6  11 3
                                                                                                                                               5  4    4 = Command value signal voltage +                   4 = Chassis
                                                                                                                                                       5 = Command value signal voltage -
       Screw-in cartridge M22 x 1,5
                                                                                                                                                       6 = Command value signal current +
       Nominal volume flow rate Q N    6,3 l/min   6,3                                                                                                 7 = Command value signal current -
                              10 l/min     10                                                                                                          8 = Reserved for extentions
                              25 l/min     25                                                                                                          9 = Reserved for extentions       X2                 Parameterisation interface
                                                                                                                                                       10 = Enable signal (Digital input)  USB, Mini B      Under the screw plug of the housing
       Nominal voltage U N    12 VDC       G12
                              24 VDC       G24                                                                                                         11 = Error signal (Digital output)                   cover
                                                                                                                                                       12 = Chassis                                         Factory set
       Slip-on coil           Metal housing square                                                                                  Command value signal voltage (PIN 4/5) resp. current (PIN 6/7) are
                                                                                                                                    selected with parameterisation and diagnostics  software PASO.
       Connection execution   Integrated electronics
       Hardware configuration
       Analog command value signal   12 pole   A1   7 pole   D1    (0…10 V preset)                                                  X1                 Analog interface (Main)           X3                 Profibus interface according to IEC
       Analog command value signal   12 pole   A4   7 pole   D4    (4 … 20 mA preset)                                                                  Connector DIN EN 175201 - 804                        947-5-2
       CANopen according to  DSP-408       C1                                                                                       Device receptacle  7 pole male                       Device receptacle  M12, 5 pole female B-coded
       Profibus DP according to Fluid Power Technology   P1
       CAN J1939 (on request)              J1                                                                                                          A = Supply voltage +                           2 3   1 = VP
                                                                                                                                                A                                                     5
                                                                                                                                            F     B    B = Supply voltage 0 VDC                       1 4   2 = RxD / TxD - N
       Function                                                                                                                                 G      C = Not connected                                    3 = DGND
       Amplifier                                                                                                                            E   D  C   D = Command value signal +                           4 = RxD / TxD - P
       Controller with current feedback value signal (0…20 mA / 4… 20 mA)   R1                                                                         E = Command value signal -                           5 = Shield
       Controller with voltage feedback value signal (0 … 10 V)       R2
                                                                                                                                                       F = Not connected
       Sealing material       NBR                                                                                                                      G = Chassis
                              FKM (Viton)   D1
                                                                                                                                    Command value signal: current (D4) or voltage (D2) to specify
                                                                                                                                    when placing the order
       Manual override

       Design index (subject to change)
       2.6-541                                                                                                                      X3                 CANopen interface according to DRP   X4 (controller only)  Feedback value interface (sensor)
                                                                                                                                                       303-1                             Device receptacle  M12, 5 pole female

       GENERAL SPECIFICATIONS                              HYDRAULIC SPECIFICATIONS                                                 Device receptacle  M12, 5 pole male                               2 3   1 = Supply voltage (output) +
                                                                                                                                                                                                      5
                                                                                                                                                 2 1   1 = Not connected                              1 4   2 = Feedback value signal +
       Designation        Proportional throttle valve with   Working pressure  p  = 350 bar                                                       5    2 = Not connected                                    3 = Supply voltage 0 VDC
                                                                                max
                          integrated electronics            Maximum volume flow  Q  = 32 l/min                                                   3 4   3 = CAN Gnd                                          4 = Not connected
                                                                                max
       Construction       Direct operated                   Volume flow direction  1 → 2                                                               4 = CAN High                                         5 = Stabilised output voltage
       Mounting           Screw-in cartridge construction   Leakage oil        max. 50 cm /min at 350 bar                                              5 = CAN Low                       Feedback value signal: current (R1) or voltage (R2) to specify
                                                                                       3
       Nominal size       M22 x 1,5 according to ISO 7789   Nominal volume flow   Q  = 6,3; 10; 25 l/min                                                                                 when placing the order
                                                                                N
       Actuation          Proportional solenoid             range              at 10 bar valve pressure drop
       Ambient temperature  -20…+65 °C                      Hysteresis         ≤ 8 %                                               Note!    The mating connector is not included in the delivery
                          The upper temperature limit is a   Fluid             Mineral oil, other fluid on request
                          guideline for typical applications, in   Viscosity range  12 mm /s…320 mm /s
                                                                                   2
                                                                                            2
                          individual cases it may also be higher or   Temperature range   -25…+70 °C (NBR)
                          lower. The electronics of the valve limit   fluid    -20…+70 °C (FKM)
                          the power in case of a too high   Contamination      Class 18 / 16 / 13
                          electronics temperature. More detailed   efficiency
                          information can be obtained from the   Filtration    Required filtration grade ß 6…10 ≥ 75,
                          operating instructions „DSV”.                        see data sheet 1.0-50
       Weight             1,0 kg
       MTTFd              150 years





                         www.wandfluh.com  Illustrations are not binding  Data subject to change  2/6  Edition: 22 46  2.6-541 E                      www.wandfluh.com  Illustrations are not binding  Data subject to change  3/6  Edition: 22 46  2.6-541 E
