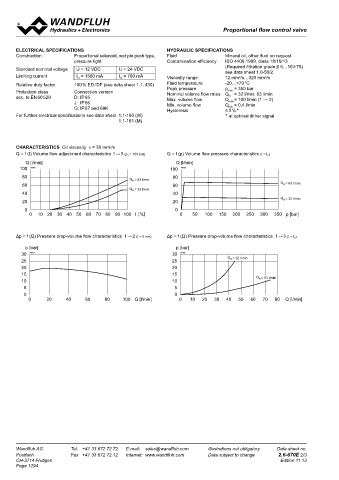

Page 1294 - Softbound_Edition_19_en
P. 1294

Proportional flow control valve
                                                                              Proportional flow control valves                                                                                             Proportional flow control valves

       ELECTRICAL SPECIFICATIONS                            HYDRAULIC SPECIFICATIONS                                               DIMENSIONS / SECTIONAL DRAWINGS
       Construction        Proportional solenoid, wet pin push type,   Fluid    Mineral oil, other fluid on request                                                                                      Cavity drawing acc. to
                           pressure tight                   Contamination efficiency   ISO 4406:1999, class 18/16/13                                                                                     Wandfluh standard
       Standard nominal voltage  U = 12 VDC  U = 24 VDC                         (Required filtration grade β 6…10 ≥ 75)
                                                                                see data sheet 1.0-50/2
       Limiting current     I G  = 1560 mA  I  = 780 mA     Viscosity range     12 mm /s…320 mm /s                                                              s36    1-5/16"-12UN-2A                       1-5/16"-12UN-2B
                                                                                              2
                                                                                     2
                                           G
       Relative duty factor   100 % ED / DF (see data sheet 1.1- 430)  Fluid temperature   -20…+70 °C                                    62,2  10
       Protection class    Connection version               Peak pressure       p max  = 350 bar                                     20                                   (3)    (2)
                                                                                   = 32 l/min, 63 l/min
       acc. to  EN 60 529   D: IP 65                        Nominal volume flow rates  Q N   = 100 l/min (1 → 2)                      15
                                                                                Q
                                                            Max. volume flow
                           J:  IP 66                        Min. volume flow     max   = 0,4 l/min                                                                                      (1)                          3
                           G: IP 67 and 69K                 Hysteresis          Q min
                                                                                ≤ 5 % ٭
       For further electrical specifications see data sheet  1.1-180 (W)        ٭ at optimal dither signal                               22,6
                                           1.1-181 (M)                                                                                                                                                               2
                                                                                                                                        2,9            95,2                  75,8          70
                                                                                                                                                                 171                     90                     1
       CHARACTERISTICS  Oil viscosity  ν = 30 mm /s                                                                                          17                 18       50     60   80
                                        2
       Q = f (I) Volume flow adjustment characteristics 1 → 3 (p 3  = 100 bar)  Q = f (p) Volume flow pressure characteristics (I = I G )
                                                                                                                                                                                                         For detailed cavity drawing
          Q [l/min]                                            Q [l/min]                                                                                                                                 see data sheet 2.13-1046
        100  K0985                                           100  K0986
         80                                                   80
                                               Q  = 63 l/min
                                               N
         60                                                   60                                    Q  = 63 l/min
                                                                                                    N
                                               Q N  = 32 l/min
         40                                                   40                                                                   PARTS LIST 1         3                               ACCESSORIES
                                                                                                    Q  = 32 l/min
         20                                                   20                                    N                                                            1                3     Proportional amplifier                  Register 1.13
                                                                                                                                    Position  Article  Description                      Mating connector EN 175301-803     Article no. 219.2002
                                                                                                                                                2
          0                                                    0
           0   10  20  30  40 50 60 70 80 90  100 I  [%]        0    50  100  150  200  250  300  350 p [bar]                                        EN 175301

                                                                                                                                    10       206.1200  Solenoid coil WD45 / 23 x 50-G24  Technical explanation see data sheet 1.0-100
                                                                                                                                                                       2
                                                                                                                                             206.1203  Solenoid coil WD45 / 23 x 50-G12
                                                                                                                                                     Junior-Timer
       Δp = f (Q) Pressure drop-volume flow characteristics  1→ 2 (I = 0 mA)  Δp = f (Q) Pressure drop-volume flow characteristics  1 → 3 (I = I G )
                                                                                                                                             206.1201  Solenoid coil WJ45 / 23 x 50-G24
                                                                                                                                             206.1204  Solenoid coil WJ45/ 23 x 50-G12
          p [bar]                                              p [bar]
         30  K0987                                           30  K0988                                                                               Deutsch
                                                                                 Q  = 32 l/min                                               206.1202  Solenoid coil WG45 / 23 x 50-G24
         25                                                  25                   N                                                          206.1205  Solenoid coil WG45 / 23 x 50-G12
         20                                                  20                                                                     15       253.8000  HB 4,5 anual override (data sheet 1.1-300)
         15                                                  15                            Q  = 63 l/min                                     239.2033  HB 0 Plug screw (data sheet 1.1-300)
         10                                                  10                             N                                       17       160.2222  O-ring ID 22,22 x 2,62 (NBR)
         5                                                    5                                                                     18       160.2220  O-ring ID 21,95 x 1,78 (NBR)
         0                                                    0
           0     20     40     60     80    100 Q [l/min]       0   10  20  30  40   50  60  70   80  Q [l/min]                     20       154.2701  Knurled nut
                                                                                                                                    50       160.2298  O-ring ID 29,82 x 2,62 (NBR)
                                                                                                                                             160.6296  O-ring ID 29,82 x 2,62 (FKM)
                                                                                                                                    60       160.2238  O-ring ID 23,81 x 2,62 (NBR)
                                                                                                                                             160.6238  O-ring ID 23,81 x 2,62 (FKM)
                                                                                                                                    70       160.2236  O-ring ID 23,52 x 1,78 (NBR)
                                                                                                                                             160.6236  O-ring ID 23,52 x 1,78 (FKM)
                                                                                                                                    80       049.3297  Backup ring RD 24,5 x 29 x 1,4
                                                                                                                                    90       049.3276  Backup ring RD 24,1 x 27 x 1,4



















       Wandfluh AG        Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.     Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
       Postfach           Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   2.6-670E 2/3              Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   2.6-670E 3/3
       CH-3714 Frutigen                                                                            Edition 11 13                   CH-3714 Frutigen                                                                             Edition 11 13
