Cavities
Cavities

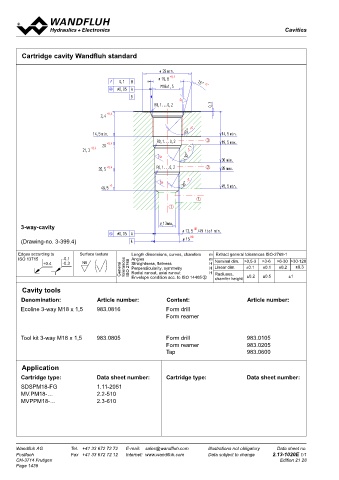

Cartridge cavity Wandfluh standard

3-way-cavity

(Drawing-no. 3-399.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
Radial runout, axial runout
H
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Ecoline 3-way M18 x 1,5 983.0816 Form drill
Form reamer

Tool kit 3-way M18 x 1,5 983.0805 - PG - Migration - Default - 11.04.11/00:06:42 983.0105
Form drill
Form reamer 983.0205
Tap 983.0600

Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
SDSPM18-FG 1.11-2051
MV.PM18-… 2.2-510
MVPPM18-… 2.3-610

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 2.13-1020E 1/1
CH-3714 Frutigen Edition 21 28
