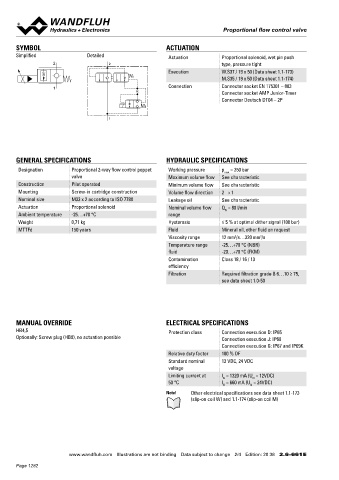

Proportional flow control valve                                                                                              Proportional flow control valve
                                                                               Proportional flow control valve


       SYMBOL                                              ACTUATION                                                               PERFORMANCE SPECIFICATIONS
       Simplified               Detailed                    Actuation          Proportional solenoid, wet pin push                 Oil viscosity u = 30 mm /s
                                                                                                                                                    2
                    2                  2                                       type, pressure tight                                 Q = f (I)  Volume flow adjustment characteristics DN  ∆p = f (Q)  Pressure drop volume flow characteristic
                                                            Execution          W.S37 / 19 x 50 (Data sheet 1.1-173)                           ∆p = 100 bar                                  p [bar]
                                                                               M.S35 / 19 x 50 (Data sheet 1.1-174)                     Q [l/min]                                          50  K0982
                                                            Connection         Connector socket EN 175301 – 803                      120  K0981_1                                                                               2      1 (l = 100%)
                    1                                                                                                                                                                      40                                   1      2 (l = 0%)
                                                                               Connector socket AMP Junior-Timer                     100                                                   30
                                                                               Connector Deutsch DT04 – 2P                            80
                                                                                                                                      60                                                   20
                                                                                                                                      40                                                   10
                                       1                                                                                              20                                                    0
                                                                                                                                       0                                                     0    20    40    60   80    100  120 Q [l/min]
                                                                                                                                         0   10  20  30  40 50 60 70 80 90  100 l [%]

                                                                                                                                    Q = f (p)  Volume flow pressure characteristics      Q  = f (p)  Leakage volume flow characteristics
                                                                                                                                                                                          L
       GENERAL SPECIFICATIONS                              HYDRAULIC SPECIFICATIONS                                                     Q [l/min]                                           Q [cm /min]
                                                                                                                                                                                                3
                                                                                                                                     120  K0983_1                                          50  K0984
       Designation        Proportional 2-way flow control poppet   Working pressure  p  = 350 bar                                    100
                                                                                max
                          valve                             Maximum volume flow  See characteristic                                   80                                    l = 100%       40
       Construction       Pilot operated                    Minimum volume flow  See characteristic                                   60                                    l = 75%        30
       Mounting           Screw-in cartridge construction   Volume flow direction  2 → 1                                              40                                    l = 60%        20
       Nominal size       M33 x 2 according to ISO 7789     Leakage oil        See characteristic                                     20                                    l = 45%        10
       Actuation          Proportional solenoid             Nominal volume flow   Q  = 80 l/min                                        0                                                    0
                                                                                N
       Ambient temperature  -25…+70 °C                      range                                                                        0   50   100  150  200  250  300  350 p [bar]       0    50  100  150  200  250  300  350 p [bar]
       Weight             0,71 kg                           Hysteresis         ≤ 5 % at optimal dither signal (100 bar)
       MTTFd              150 years                         Fluid              Mineral oil, other fluid on request
                                                            Viscosity range    12 mm /s…320 mm /s
                                                                                   2
                                                                                            2
                                                            Temperature range   -25…+70 °C (NBR)
                                                            fluid              -20…+70 °C (FKM)                                    ACCESSORIES                                          SURFACE TREATMENT
                                                            Contamination      Class 18 / 16 / 13                                   Proportional amplifier        Register 1.13          ◆  The cartridge body, the slip-on coil and the armature tube are
                                                            efficiency                                                                                                                    zinc-nickel coated
                                                            Filtration         Required filtration grade ß 6…10 ≥ 75,               Electric plug B (black)       Article no. 219.2002
                                                                               see data sheet 1.0-50                                Threaded body                 Data sheet 2.9-205
                                                                                                                                    Technical explanations        Data sheet 1.0-100
                                                                                                                                    Filtration                    Data sheet 1.0-50
                                                                                                                                                                                        SEALING MATERIAL
                                                                                                                                                                                        NBR or FKM (Viton) as standard, choice in the type code


       MANUAL OVERRIDE                                     ELECTRICAL SPECIFICATIONS
       HB4,5                                                Protection class   Connection execution D: IP65
       Optionally: Screw plug (HB0), no actuation possible                     Connection execution J: IP66                        INSTALLATION NOTES                                   STANDARDS
                                                                               Connection execution G: IP67 and IP69K               Mounting type      Screw-in cartridge M33 x 2        Cartridge cavity    ISO 7789
                                                            Relative duty factor  100 % DF                                          Mounting position  Any, preferably horizontal        Solenoids           DIN VDE 0580
                                                            Standard nominal   12 VDC, 24 VDC                                       Tightening torque  M  = 130 Nm Screw-in cartridge    Connection execution D  EN 175301 – 803
                                                                                                                                                        D
                                                            voltage                                                                                    M  = 5 Nm knurled nut             Protection class    EN 60 529
                                                                                                                                                        D
                                                            Limiting current at  I  = 1320 mA (U  = 12VDC)                                             M  = 9,5 Nm HB0                   Contamination efficiency ISO 4406
                                                                                          N
                                                                               G
                                                            50 °C              I  = 660 mA (U  = 24VDC)                                                 D
                                                                               G         N                                                             M  = 5,5 Nm HB4,5
                                                                                                                                                        D
                                                           Note!    Other electrical specifications see data sheet 1.1-173
                                                                    (slip-on coil W) and 1.1-174 (slip-on coil M)







                         www.wandfluh.com  Illustrations are not binding  Data subject to change  2/4  Edition: 20 38  2.6-661 E                      www.wandfluh.com  Illustrations are not binding  Data subject to change  3/4  Edition: 20 38  2.6-661 E
