Cavities
Cavities

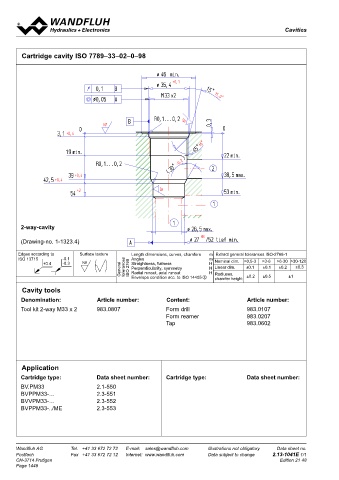

Cartridge cavity ISO 7789–33–02–0–98

2-way-cavity

(Drawing-no. 1-1323.4)

Edges according to Surface texture Length dimensions, curves, chamfers m Extract general tolerances ISO-2768-1
ISO 13715 -0.1 Angles m Nominal dim. >0,5-3 >3-6 >6-30 >30-120
+0.4 -0.3 N8 Straightness, flatness H
General tolerances ISO 2768 Perpendicularity, symmetry H Linear dim. ±0.1 ±0.1 ±0.2 ±0.3
Radial runout, axial runout
H
Radiuses,
Envelope condition acc. to ISO 14405 E chamfer height ±0.2 ±0.5 ±1
Cavity tools
Denomination: Article number: Content: Article number:
Tool kit 2-way M33 x 2 983.0807 Form drill 983.0107
Form reamer 983.0207
Tap 983.0602

- PG - Migration - Default - 09.04.11/11:38:22
Application
Cartridge type: Data sheet number: Cartridge type: Data sheet number:
BV.PM33 2.1-550
BVPPM33-… 2.3-551
BVVPM33-… 2.3-552
BVPPM33-../ME 2.3-553
