Solenoids/Manual overrides NG6

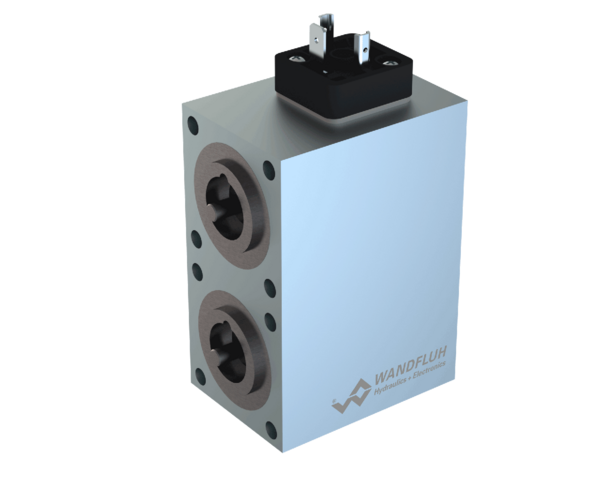

The SIS45DV_M40 is a switching solenoid. Its design corresponds to VDE standard 0580. The steel housing has a zinc coated finish as standard. Static pressure tightness is 350 bars. All o-rings are Viton. The solenoids are fixed to the valve with eight screws. The solenoid will be supplied with a plug screw as standard, or depending on the intended use, with integrated manual override. The connector plate corresponds to ISO 4400 and DIN 43650.
to VDE 0580
Plug plate to ISO 4400 / DIN 43650
Protection class IP65
Essential for hydraulic poppet valves. Because of the risk of overheating, the solenoid must never be used separately. The lenght of the fixing screws depends on the base material of the body. An o-ring is used for the valve seal. Information on screws and o-rings will be found in the data sheets relating to the valves concerned. Before changing the plug screw or the screw with integrated manual override, care must be taken to ensure that the solenoid is not under pressure. Risk of injury! The maximum operating pressure is determinded by the valve actually used.
