22.02.2018

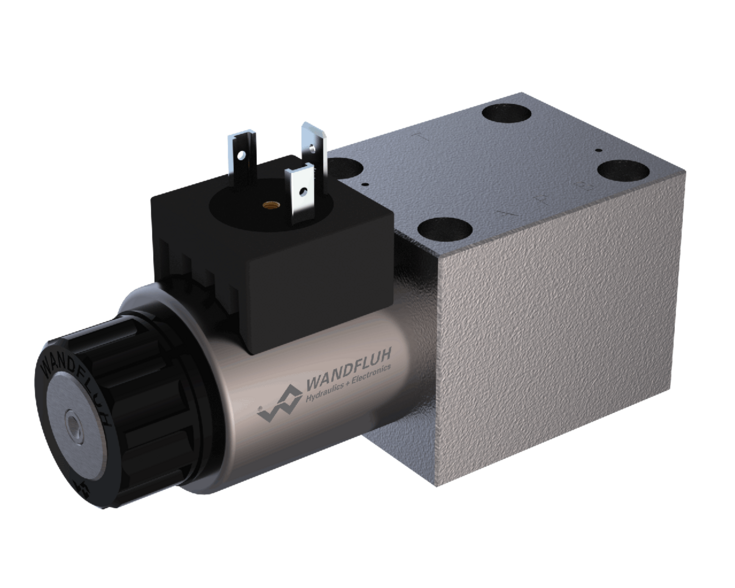

Solenoid operated spool valve with lowest leakage WDEFA06…-Z546
The spool valve in the nominal size NG6 was specially developed for applications in which the leakages must be minimal, or in which a reduced dimension is required. The valve can be operated with input pressures of up to 350 bar and switches volume flows of up to 10 l/min securely and reliably. The leakage is 4-6 ccm/min at 200 bar. The valve is available as 4/2- or 4/3-way function with the designation WDEFA06…-Z546 and can be operated with all Wandfluh standard solenoid coils in the size 37x40 mm.
Further details can be found in the <link www.wandfluh.de/en/product-list/product-single/wd-fa06-z546/ - external-link-new-window "Opens internal link in current window">1.2-58</link> data sheet.
